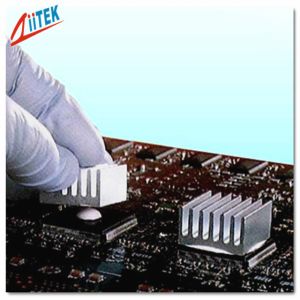

Thermal Conductive Putty Thermal Grease Thermal Paste Insulation Materials For Electronic Pcb Boards

Thermal Conductive Putty For Electronic Pcb Boards Thermo Grease Thermal Paste Insulation Materials

The TIG™780-18 is environmentally safe silicone-based thermal grease designed to solve overheating and reliability issues.The TIG™780-18 is a heat conducting product in the shape of paste.They serve to moisten the contact surface sufficiently so as to form an interface of extremely low thermal impedance.Consequently, the heat dissipation efficiency is far superior to that offered by others.

TIG780-18-TDS_EN_REV02.1.pdf

Features

> Good thermal conductivity
> Non-toxic and environmentally safe

> Excellent long term stability
> Thoroughly wets out contact surfaces to create low thermal resistance

Applications

> Semiconductor cases and heat sinks
> Chipsets and Graphic processing
> CPU's and GPU's
> Automatic dispensing and screen-printing

Typical Properties of TIG™780-18 Series
ProductName	TIG^TM780-18	Test Method
Color	White	Visual
Construction & Compostion	Metal oxide filled silicone oil	Ziitek Test Method
Density	2.6g/cm3	ASTM 2240
Thermal Conductivity	1.8W/mK	ASTM D5470
Viscosity(Pa.s@25℃)	1800	Brookfield DV2T
Bond line Thickness(mm)	0.018	ASTM D374
Thermal lmpedance@50psi	0.05℃*in²/W	ASTM D5470
Recommended operating temp(℃)	-45~200℃	Ziitek Test Method
Evaporation(TML)(200℃@24hrs)	0.15%	ASTM E595

Package:

TIGTM780-18 Series is available in 1kg (pint container),3kg (quart container), and 10kg(gallon container) or custom packaged in syringes for automated applications.

Storage:
Store from 20C to 35°C with a maximum humidity of 50%. Do not store in freezer orrefrigerator below 10°℃.
